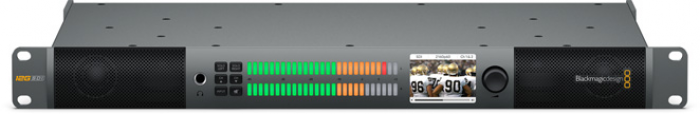

Blackmagic Audio Monitor 12G

SKU: HDL-AUDMON1RU12G Categories: , Brand:

$2,035.00

Own It Now, Pay Later | 6 Months interest free
Easy Payment With

FREE DELIVERY ON ORDERS OVER $99*

Excludes print orders and bulky items

CONTACT US FOR A PRICE MATCH!

Found it cheaper? Enquire now for a price match deal

AUTHORISED AUSTRALIAN DEALER

With over 30 Years experience In the photographic industry

Blackmagic Audio Monitor 12G gives you fantastic quality audio monitoring in an impossibly small one rack unit size! With a dual subwoofer design combined with extra wide range speakers all backed by a super powerful class D amplifier. Blackmagic Audio Monitor 12G has been designed to be both an audio and video monitoring solution so you get advanced 12G?SDI up to 60p input, as well as balanced XLR analog audio, balanced AES/EBU digital audio and consumer level HiFi audio inputs. Blackmagic Audio Monitor 12G features an elegant design with big bright multi color VU, PPM or Loudness audio meters and a built in LCD for monitoring video sources. You even get HDMI 4K output so you can connect a television for big screen video monitoring of your SDI sources!

Reviews

There are no reviews yet.

Be the first to review “Blackmagic Audio Monitor 12G”

Connections

SDI Video Inputs

1

SDI Video Outputs

1 loop out.

SDI Rates

270Mb, 1.5G, 3G, 6G, 12G.

HDMI 2.0 Video Outputs

1

Multi Rate Support

SDI and HDMI are switchable between standard definition, high definition and ultra high definition.

SDI Video Loop

1 x reclocked 10?bit SD/HD/3G?SDI, 6G?SDI and 12G?SDI.

Analog Audio Inputs

2 x XLR. 2 x RCA HiFi.

Analog Audio Outputs

1 x 6.5mm headphone socket.

Digital Audio Inputs

1 x XLR.

Built in Speaker

Stereo with 2?way crossover and independent stereo subwoofers.

AES/EBU Audio Inputs

2 channels balanced 110Ω AES/EBU via XLR.

SDI Audio Inputs

16 channels embedded in SD, HD and UltraHD 4K.

SDI Audio Outputs

16 channels embedded audio loop out.

HDMI Audio Outputs

8 Channels embedded in SD, HD and 4K.

Ethernet

1Gb/sec for configuration and firmware updates.

Computer Interface

USB?C for configuration and firmware updates.

Metering

2 x 27 RGB segment LED VU, PPM or Loudness meters.

Modes

Push button interface allows for input selection, channel selection, independent left and right audio, mute and volume control with scroll wheel.



  • Blackmagic Audio Monitor 12G
  • PPM and Loudness Scale Stickers
  • SD card with software and manual
