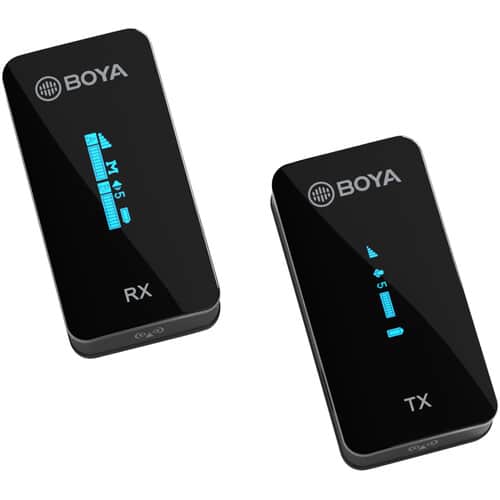

Boya BY-XM6-S1 Ultra Compact 2.4GHz Wireless Microphone (1xRX & 1xTX)

SKU: 500360 Category:

$249.00

Available on back-order

Own It Now, Pay Later | 6 Months interest free
Easy Payment With

FREE DELIVERY ON ORDERS OVER $99*

Excludes print orders and bulky items

CONTACT US FOR A PRICE MATCH!

Found it cheaper? Enquire now for a price match deal

AUTHORISED AUSTRALIAN DEALER

With over 30 Years experience In the photographic industry
  • For Video, Vlogging, YouTube, Instagram
  • Compact Transmitter with Built-In Mic
  • Omnidirectional Lavalier Mic
  • Compact Dual-Channel Receiver
  • Easy-to-Use Plug & Play Operation
  • Adjustable Gain, Headphone Monitoring
  • 3.5mm Cables for Camera & Mobile Device
  • 6.5 Hrs on Built-In Rechargeable Battery
  • Up to 328′ Range

The Boya BY-XM6-S1 is a compact, true-wireless microphone system offering an easy-to-use and all-inclusive solution for recording one subject to your camera, camcorder, or mobile device. The system delivers improved sound quality over the built-in mics on cameras and mobile devices to supply clear, intelligible speech for journalists, YouTube/Instagram creators, TikTok personalities, vloggers, and more.

The package includes a clip-on transmitter with a built-in omnidirectional microphone, letting you quickly and easily mic up your subject for hands-free, on-camera demonstrations, presentations, interviews, and performances. A lavalier microphone is also included for a more discreet appearance if desired; simply plug the mic into the 3.5mm input jack and use the transmitter as a bodypack unit.

The compact, dual-channel receiver offers a 328′ line-of-sight maximum operating range and includes an attachment clip and 3.5mm output jack. Connecting cables for both your camera and smartphone are included, while a second 3.5mm jack is for headphone monitoring. The transmitter and receiver are both powered by rechargeable lithium-ion batteries; the transmitter will run for up to 7 hours while the receiver will run for 6.5 hours. The components arrive pre-paired at the factory—just power up, plug the receiver into your camera or phone, and you’re ready to go.

Easy-to-Use System with Clip-On Mic/Transmitter + Lavalier Mic

  • The compact clip-on transmitter features a built-in microphone for a true-wireless solution for on-camera talent.
  • A lavalier mic is included when a more discreet look is desired; the mic plugs into the 3.5mm jack on the transmitter.
  • A fur windshield is provided for the transmitter mic and a foam windscreen is provided for the lavalier.
  • The omnidirectional pickup patterns on the transmitter mic and the lav mic help to deliver consistent audio levels, even when the subject turns away from the mic.
  • The adjustable gain control on the transmitter allows you to optimize the input for speakers and performers with varying performance styles.
  • An OLED screen on the transmitter makes it easy to see levels, along with a battery, mute and pairing statuses.
  • Simply power On the receiver and transmitter to access reliable wireless audio functionality in an instant.

Compact, Dual-Channel Receiver

  • The compact receiver clips to your camera’s shoe mount or a smartphone holder (available separately) and connects to the 3.5mm input jack on your camera or mobile device.
  • The receiver’s output level can be adjusted to accommodate various cameras and recording devices.
  • A 3.5mm TRS cable for connection to a camera or camcorder is included. A 3.5mm TRRS cable for connection to a smartphone or tablet equipped with a headphone jack is also included.
  • The receiver features a 3.5mm headphone jack for monitoring.
  • The OLED screen makes it easy to see levels, battery statuses, mute, mono/stereo, and pairing statuses.
  • For a two-person shoot, simply add another transmitter instead of buying a whole system. Since the XM6 is a dual-channel receiver, it can simultaneously handle two XM6 wireless transmitters (a second transmitter available separately).

Reviews

There are no reviews yet.

Be the first to review “Boya BY-XM6-S1 Ultra Compact 2.4GHz Wireless Microphone (1xRX & 1xTX)”

System
Wireless Technology Digital 2.4 GHz
Included Transmitters 1 x Clip-On with Microphone
Diversity Non-Diversity
RF Frequency Band 2405 to 2478 MHz
RF Channel Scanning Auto-Scan
Max Operating Range 328.1′ / 100 m (Line of Sight)
Max Transmitters per Band 2
Built-In Recorder No
Timecode Support No
Control App Support No
Encryption None
Modulation GFSK
Receiver
Receiver Type Camera-Mount
Mounting Options Belt Clip (with Included Hardware)
Number of Audio Channels 2
Audio I/O 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Line Output
1 x 1/8″ / 3.5 mm TRS Female Unbalanced Headphone Output
Network I/O None
Word Clock I/O None
USB/Lightning Connectivity 1 x USB Type-C (Bus Power, Charging)
Standalone Audio Interface Capable No
Power Requirements Battery, Bus Power (USB)
Battery Type 1 x Built-In Rechargeable
Approx. Battery Life 6.5 Hours (Lithium Rechargeable)
DC Input Power 5 VDC
Display & Indicators OLED (Battery Status, Level, Metering, Power, Sync, Transmitter Battery Status)
Operating Temperature 14 to 122°F / -10 to 50°C
Storage Temperature -4 to 131°F / -20 to 55°C
Dimensions 1.3 x 2.4 x 0.7″ / 32 x 62 x 17 mm
Weight 1.1 oz / 32 g
Transmitter
Transmitter Type Clip-On with Microphone
RF Output Power 10 mW
Audio I/O 1 x 1/8″ / 3.5 mm 3-Pin Female Input
Included Cable Connector 1/8″ / 3.5 mm TRS
Muting Off/On Switch
Auto-Level Control No
Frequency Response 35 Hz to 18 kHz
Antenna Internal
Power Requirements Battery
Battery Type 1 x Built-In Rechargeable (Included)
Approx. Battery Life 7 Hours
USB/Lightning Connectivity 1 x USB Type-C (Charging)
Display & Indicators LED (Battery Status, Power, Sync)
Operating Temperature 14 to 122°F / -10 to 50°C
Storage Temperature -4 to 131°F / -20 to 55°C
Dimensions 1.3 x 2.4 x 0.7″ / 32 x 62 x 17 mm
Weight 1.1 oz / 32 g
Microphone
Microphone Type Integrated
Sound Field Mono
Polar Pattern Omnidirectional
SNR 84 dB
Maximum SPL 120 dB SPL
Sensitivity -39 dB
Microphone 2
Microphone Type Lavalier
Sound Field Mono
Polar Pattern Omnidirectional
Maximum SPL 110 dB SPL
Output Connectors 1 x 1/8″ / 3.5 mm TRS Male
Packaging Info
Package Weight 0.69 lb
Box Dimensions (LxWxH) 7.9 x 4.6 x 1.9″

  • BOYA BY-XM6-S1 Digital Camera-Mount True-Wireless 1-Person Microphone System (2.4 GHz)
  • BY-XM6 RX Receiver
  • BY-XM6 TX Transmitter with Built-In Microphone
  • Omnidirectional Lavalier Microphone
  • Alligator-Style Lavalier Mic Clip
  • Foam Windscreen
  • Fur Windshield for Transmitter Mic
  • 2 x USB Charging Cable
  • 3.5mm TRS Cable for Cameras
  • 3.5mm TRRS Cable for Mobile Devices
