Core SWX FX6 V-Mount Battery Plate

• V-Mount Battery plate for the FX6
• Purpose-built for Sony FX6
• Includes 2-pin out + P-Tap
• USB Port for future firmware upgrades

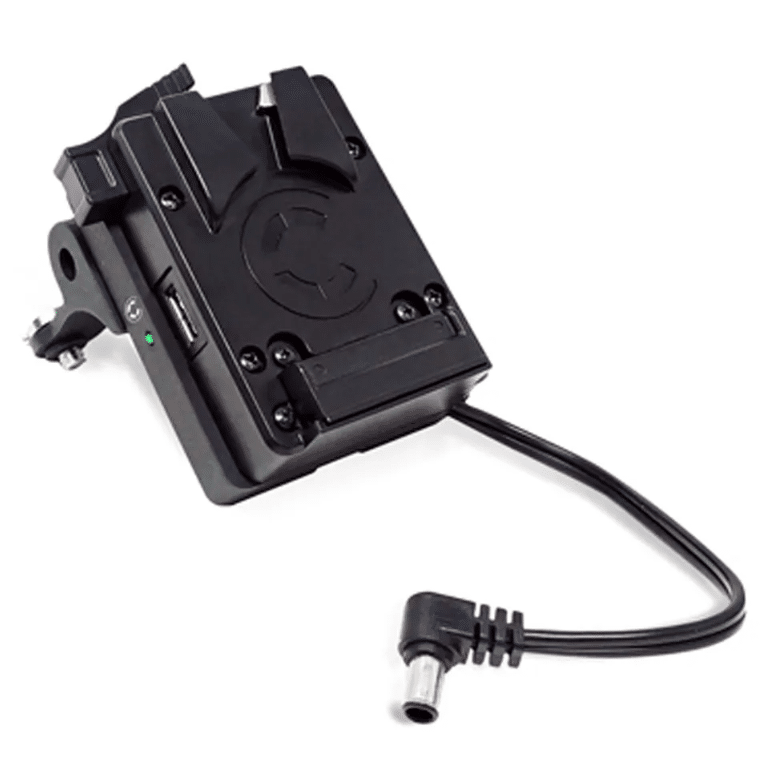

The CXVM-FX6 mounts directly to the back of the Sony PXW-FX6. The milled aluminium product inserts into the battery slot of the camera and also attaches to the top of the camera(with included screw hardware) to provide a secure platform for mounting v-mount batteries directly onto the FX6 camera. It has a 19.5v DC output with a visual low battery warning LED and a DC barrel input (OEM camera power supply) for hot-swapping between external and onboard power. In addition, it’s equipped with power and USB to power additional accessories. A USB firmware update port on the rear ensures future compatibility with camera firmware updates.

Up to a BP-U100 battery pack fits inside of the battery cavity on the camera, allowing the user to hot-swap batteries. Once the v-mount on-board pack dies, it will automatically pull power from the BP-U battery and you will see the battery indication on the viewfinder change.
