FLIR Breach PTQ136 Thermal Imaging Multi- Purpose Monocular

SKU: TIFLI070 Categories: ,

$4,250.00

Available on back-order

Own It Now, Pay Later | 6 Months interest free
Easy Payment With

FREE DELIVERY ON ORDERS OVER $99*

Excludes print orders and bulky items

BONUS 1YR WARRANTY ON ALL PRODUCTS*

Excludes DJI and Black Magic Products

AUTHORISED AUSTRALIAN DEALER

With over 30 Years experience In the photographic industry

DESCRIPTION

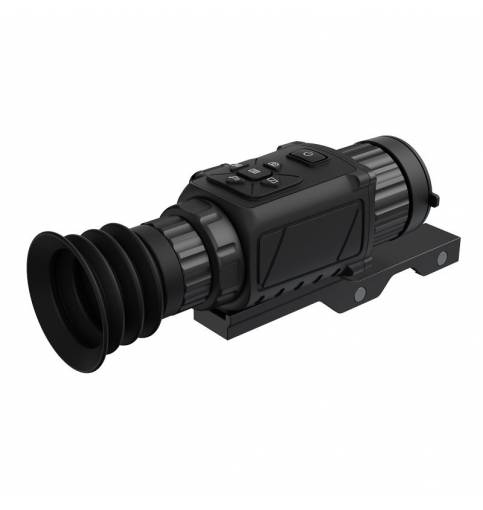

The Thunder TH25 Thermal Weapon Scope is a very flexible and innovative package from HIKMICRO.

The Thunder can be used in three configurations; a Thermal Weapon Scope, a Handheld Thermal Monocular, and a Thermal Front Add-On (additional Lens System required)

The TH25 Weapon Scope is supplied with a 1.5x magnification lens system and a detection distance of 882m. Add the Picatinny rail and you’re ready to attach to your rifle. Simply detach the Picatinny rail and the Thunder can be used as a Thermal Monocular.

Using the highly sensitive, SUB 35mK NETD, 384×288 17µm Thermal Sensor, the HikMicro Thunder Thermal Weapon Scope delivers industry-leading detail and clarity in a compact and rugged package. The software built into the Thunder Weapon Scope is easy to use and would be instantly recognisable to anyone who has used a HIK Micro Thermal Monocular.

The Thunder shares many of the features including the choice of 4 colour palettes, Hot Track, and WiFi, in order to stream, record and control from your phone, plus NEW and exciting features like ‘Picture-in-Picture’, 5 reticle choices and in with the option of 3 colours.

HikMicro Thunder 25mm 35mK Smart Thermal Weapon Scope

HIKVISION THERMAL SENSOR

At the heart of the Thunder is the HikVision 384x288px, 17µm thermal sensor (NETD Rating = <35mK).

35mK NETD Rating = One of the most sensitive sensors available on the market, detecting even the smallest temperature differences!

This combines with the large, 35mm objective lens and focus system to achieve a crystal clear image and enhanced detection distances.

Combine this with the HIK software that processes the image you see on screen and you have an unbeatable package that performs well above its price point.

T-Vision App: Connect – Control – Stream

Connect your smartphone and take control of all features of the Thunder.

The T-Vision app allows you to stream the output in real-time allowing you to share your viewpoint with a friend.

You can also record images and video, optimise the colour profile, display settings and magnification all from the easy to use app.



HikMicro Thunder 25mm 35mK Smart Thermal Weapon Scope

  • HIK Micro Thunder Thermal Weapon Scope
  • HIK Micro Thunder Thermal Weapon Scope Eyepiece
  • Picatinny Rail System
  • Rechargeable CR123A Batteries w/ Charger
  • USB-C Cable
  • Storage Bag

Reviews

There are no reviews yet.

Be the first to review “FLIR Breach PTQ136 Thermal Imaging Multi- Purpose Monocular”

Specification Details
Image Sensor Uncooled Focal Plane Arrays
Pixel Interval 17um
Max. Resolution 384 x 288
Response Waveband 8um to 14um
NETD less than 35 mk (25ºC, F#=1/0)
Lens (Focal Length) 25mm
IFOV 0.68 mrad
Field of View 14.9º x 11.2º
F Number F1.0
Frame Rate 50Hz
Magnification 1.5x
Monitor 0.39-inch, OLED, 1024 x 768
Palettes Black hot, white hot, red hot, fusion
Exit Pupil 6mm
Eye Relief 45mm
Observation Distance Max. 882m
Contrast Adjustment Yes
Brightness Adjustment Yes
Digital Zoom 1x, 2x, 4x, 8x
Cursor Yes
Hotspot Yes
Distance Measurement Yes
Scene Mode Jungle, Recognition
Standby mode Yes
Video Recording Yes
Picture Snapshot Yes
PIP Yes
DPC Yes
Uniformity Correction Auto, Manual, External Correction
Storage Built-in EMMC (16GB)
Battery Replaceable, Applicable type: CR123A, RCR123A
Battery Operating Time 4.5h (25ºC, with hotspot off), 4 h (25ºC with hotspot on)
Anti-reverse battery connection Yes
Overvoltage Protection Yes
Battery Capacity Display Yes
Type-C Power Supply 5 VDC, 2A, Supports external power supply
Port Type-C
Working Temperature -20º to 55ºC (-4ºF to 131 ºF)
Protection Level IPX7
Vibration & Shock 750 g/1 ms
Dimension (L x W x H) 187.2mm x 62.5mm x 59.2mm (7.37″ x 2.46″ x 2.33″)
Weight 0.39 kg (0.86 lb) without eyepiece and batteries.
Stadiametric Range Finder Yes
