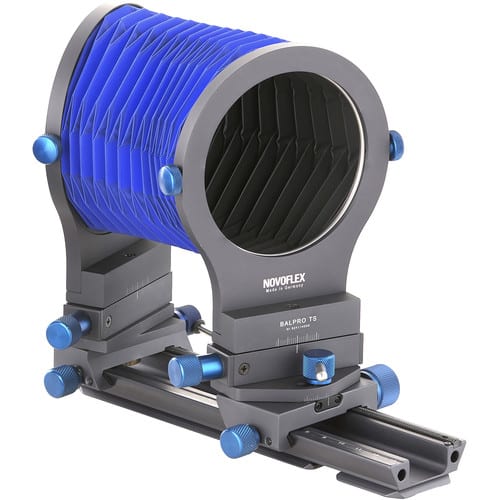

Novoflex BALPRO T/S Bellows

• Universal macro bellows with tilt/shift allow you to get small with your creative photography and videography and enlarge tiny objects with existing lenses
• Large enough to accommodate any camera with interchangeable lenses from 35mm to medium format style cameras
• Extensive collection of lens and camera mounting adapters allows hundreds of camera and lens combinations to be used (adapters not included)
• Minimum Extension Range:4cm, Maximum Extension
• Range: 19.2cm for versatile macro magnification values
  Add NOVOFLEX Auto Reversing Rings for complete data transfer between camera and lens (Auto Reversing Rings are not available for all camera models and allow only the same system lenses to be used)

The Novoflex Balpro T/S tilt/shift bellows open up completely new prospects for ambitious architecture and nature photographers. This bellow system rounds out Novoflex’s comprehensive offering of high-end bellows. Following on the Novoflex Balpro 1 universal bellows, the Balpro T/S now provides a perfect tilt/shift bellows system for cameras up to a 6 x 7 cm format. This bellows system requires separately purchased lens head and camera adapters depending on which combination of camera and lens you are trying to use.

Universal, up to 6×7

The combination options are practically inexhaustible: virtually all 35mm and medium format lenses as well as special lenses can be used with nearly all 35mm and many medium format cameras up to 6x7cm.

Tilt & Shift functions

Standard adjustment is 26mm horizontally, the rotation 15° left and 15° right. Provides a tilt and shift function at the front and back of the bellows. In a normal shooting position, you can take ideal photographs according to Scheimpflug. Turn the bellows by 90° to portrait format to compensate for converging lines.

Choice of lens heads

Novoflex offers three special lens heads (Componon S) by Schneider in Bad Kreuznach for the BALPRO 1 and BALPRO T/S bellows. These lens heads are flush-mounted permanently on the bellows:

– Componon S 80mm f/4.0 for 35mm format
– Componon S 100mm f/4.0 for 645 format
– Componon S 150mm f/4.0 for 6×6 format
– High-precision controls, attractive design and high-calibre manufacturing
