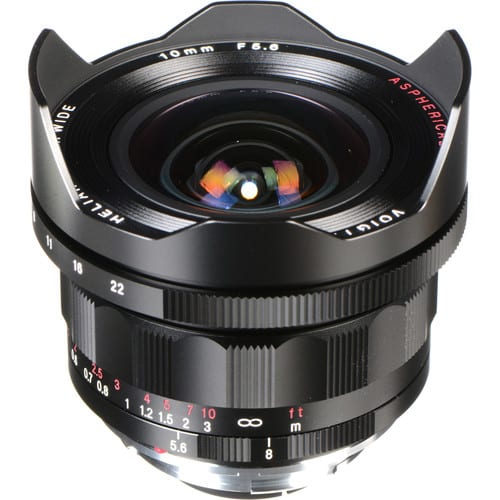

Voigtlander 10mm f5.6 VM Hyper Wide Heliar Asperical Lens – Leica M Mount

SKU: BA334A Categories: , Brand:

$1,695.00

Own It Now, Pay Later | 6 Months interest free
Easy Payment With

FREE DELIVERY ON ORDERS OVER $99*

Excludes print orders and bulky items

CONTACT US FOR A PRICE MATCH!

Found it cheaper? Enquire now for a price match deal

AUTHORISED AUSTRALIAN DEALER

With over 30 Years experience In the photographic industry
  • Leica M-Mount Lens
  • Aperture Range: f/5.6 to f/22
  • Two Aspherical Elements
  • Rectilinear, Non-Fisheye Design
  • Optimized for Use with Digital Cameras
  • Manual Focus Design
  • Minimum Focusing Distance: 1.6′
  • Built-In Lens Hood
  • Rounded 10-Blade Diaphragm

Offering an incredibly wide field of view while maintaining a rectilinear design, the Heliar-Hyper Wide 10mm f/5.6 Aspherical Lens from Voigtlander is designed for 35mm film and full-frame digital M-mount cameras, and features an updated Heliar design to limit distortion and maintain consistent sharpness and illumination to suit mirrorless camera designs. Two aspherical elements are employed in the 13 elements, 10 groups of optical design to control spherical aberrations and distortions throughout the aperture range. The lens also uses a manual focus design to permit fine-tuned control over focus placement, with a minimum focusing distance of 1.6′, and a built-in petal-style lens hood is also featured to reduce flare and ghosting, as well as protect the front lens element.

Incredibly wide-angle 10mm f/5.6 lens provides a 130° angle of view and is compatible with full-frame digital and 35mm film M-mount cameras.
Rectilinear (non-fisheye) design maintains straight lines toward the periphery of the frame for a more realistic portrayal of architectural and other geometrically complex subjects.
Updated Heliar optical design helps to maintain consistent peripheral illumination, eliminate colour fringing, and reduce distortion; making it ideal for use with mirrorless digital cameras.
Two aspherical elements are featured in the optical design to control spherical aberrations and improve clarity, sharpness, and resolution.
Manual focus design permits smooth, refined control along with a minimum focusing distance of 1.6′.
Built-in, non-removable lens hood helps to prevent lens flare and ghosting for increased contrast and colour fidelity when working in strongly lit conditions.
Ten-blade diaphragm contributes to a smooth quality of bokeh.

Reviews

There are no reviews yet.

Be the first to review “Voigtlander 10mm f5.6 VM Hyper Wide Heliar Asperical Lens – Leica M Mount”

Colour
Black
Focal Length
10mm
Maximum Aperture
f/5.6
Minimum Aperture
f/22
Lens Mount
Leica M
Angle of View
130°
Minimum Focus Distance
1.6′ / 50 cm
Optical Design
13 Elements in 10 Groups
Diaphragm Blades
10, Rounded
Focus Type
Manual Focus
Filter Size
No
Dimensions (ø x L)
2.7 x 2.3″ / 67.8 x 58.7 mm
Weight
11 oz / 312 g
Packaging Info
Package Weight
0.96 lb
Box Dimensions (LxWxH)
5.3 x 4.5 x 4.4″

  • Front and Rear Lens Caps
