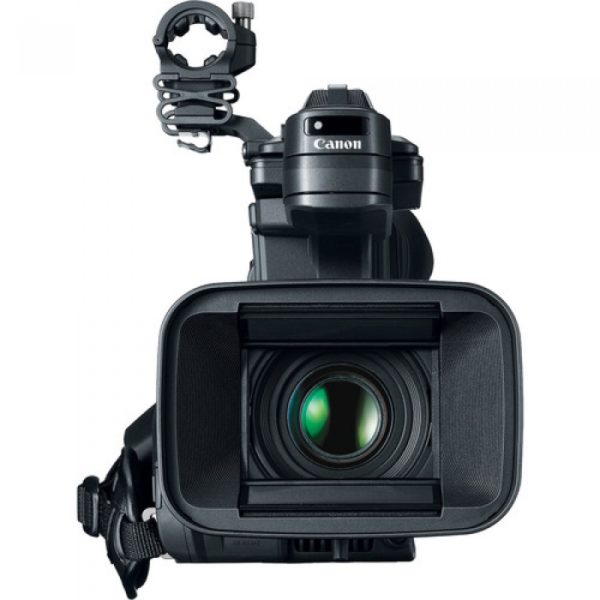

Canon XF705 4K Video Camera

SKU: XF705 Categories: , Brand:

$10,499.00

Own It Now, Pay Later | 6 Months interest free
*Bulky items will incur extra shipping charges
Easy Payment With

FREE DELIVERY ON ORDERS OVER $99*

Excludes print orders and bulky items

CONTACT US FOR A PRICE MATCH!

Found it cheaper? Enquire now for a price match deal

AUTHORISED AUSTRALIAN DEALER

With over 30 Years experience In the photographic industry

The XF705 4K 1″ Sensor XF-HEVC H.265 Pro Camcorder from Canon offers up to UHD 4K60 4:2:2 10-bit capture in a compact, ergonomic form. With both Adobe Premiere Pro 14.0 and Apple Final Cut Pro 10.4.7 now offering H.265/XF-HEVC support, XF705 users can now take advantage of improved compression and reduced bit rates, especially when shooting and finishing in 4K. Designed for easy portability, the XF705 is well suited for documentary, ENG, events, and sports capture. Its 1″ CMOS sensor and dual DIGIC DV 6 processors provide high sensitivity and low noise for natural-looking images. Camera features include 1080p rates up to 120 fps, 12G-SDI and HDMI 2.0 outputs, internal ND filters, and dual XLR audio inputs.

The XF705 incorporates a 15x HD optical zoom with up to 30x Advanced Zoom, a nine-bladed iris for rounded highlights, a 4″ touchscreen LCD, and five-axis optical image stabilization. Imaging features include Dual-Pixel Autofocus (DPAF), Wide Dynamic Range Gamma, and both HLG (Hybrid Log Gamma) and PQ (Perceptual Quantization) HDR recording for impressive latitude. Firmware upgrade version 1.0.1.1 improves the zoom response in both ring and rocker modes, boosts the focus speed while zooming, and adds a vertical filter function to reduce artifacts like moiré and jagged edges.

The camera records to dual SDXC card slots and includes genlock, timecode, Ethernet, and RS-422 ports. On the audio side, the XF705 features four channels of LCPM audio with manual/automatic recording levels, and dual XLR inputs. Built-in Wi-Fi allows you to control the camera’s functions via browser and transfer proxy files. Camera control is also available using the included WL-D6000 remote.

Features

  • 1″ CMOS sensor captures UHD 4K video up to 60 fps and HD up to 120 fps
  • 4:2:2 10-bit recording in the highly efficient H.265/HEVC codec
  • Adobe Premiere Pro 14.0 and Apple Final Cut Pro 10.4.7 support for editing with H.265/HEVC files
  • The sensor and two DIGIC DV 6 processors produce images with shallow depth of field, high sensitivity, and low noise
  • Integrated 15x optical, 30x digital zoom lens with 25.5 to 382.5mm (35mm-equivalent) focal range
  • Improved zoom and focusing while zooming, as well as a reduction in artifacts with firmware upgrade v1.0.1.1
  • 5-axis optical stabilization with Standard, Dynamic, and Powered modes
  • 9-blade iris for attractive bokeh looks
  • Manual ND filter wheel with ND 1/4, 1/16, and 1/64 settings
  • HLG (Hybrid Log Gamma) and PQ (Perceptual Quantization HDR recording for full-color rendition and wide latitude
  • Two SDXC memory card slots
  • Dual-pixel CMOS autofocus with touch focus on the 4″ LCD panel
  • Fine-tune gain during simultaneous HDR and SDR recording
  • Canon Log 3 offers wide latitude in post-grading
  • Wide Dynamic Range with seamless gradations and minimal blown-out highlights
  • Rotatable 4.0″ LCD touchscreen and 0.46″ OLED EVF for accurate viewing
  • HDMI 2.0 and 12G-SDI outputs
  • Genlock, SMPTE timecode, Ethernet, and remote ports
  • Live IP streaming in H.265 or H.264
  • Dual XLR inputs, an internal stereo mic, and a mini-jack input offer up to four channels of audio input
  • Compatible with the optional RC-V100 remote controller
  • Compact, lightweight design is suited for ENG, documentary, and run-and-gun productions
  • Wired and Wi-Fi connectivity for FTP file transfers

Reviews

There are no reviews yet.

Be the first to review “Canon XF705 4K Video Camera”

Imaging
Image Sensor 1-Chip 1" CMOS Sensor
Sensor Resolution 4268 x 3148 (13.4 MP)
Effective Sensor Resolution 3840 x 2160 (8.29 MP)
Gain -6 to 33 dB
Minimum Illumination 3 lux at 1/30 Shutter Speed 2.5 lux at 1/25 Shutter Speed
White Balance Range 2000 to 15,000K
Lens
Focal Length 8.3 to 124.5mm
35mm Equivalent Focal Length 25.5 to 382.5mm
Optical Zoom Ratio 15x
Max Digital Zoom 15x
Maximum Aperture f/2.8
Minimum Aperture f/4.5
Optical Design 18 Elements in 14 Groups
Minimum Focusing Distance Entire Zoom Range: 2.0' / 60.0 cm Wide: 0.4" / 1.0 cm
Filter Size 58 mm
Control Rings Focus Zoom Iris
Image Stabilization Optical Digital
Focus Control Autofocus Manual Focus
Camera
Shutter Speed 1/4 to 1/2000 sec
Shutter Angle 11 to 360°
Scan Rate Adjustable Yes
Built-In ND Filter Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Built-In Microphone Type Stereo
Recording Media 2 x SDXC Card Slots
Recording
Recording Modes H.265/MXF/XF-HEVC 4:2:2 10-Bit: 3840 x 2160p at 24/25/30/50/60 fps (160 Mb/s) 3840 x 2160p at 24/25/30/50/60 fps (110 Mb/s) 1920 x 1080p at 24/25/30/50/60 fps (60 Mb/s) 1920 x 1080p at 24/25/30/50/60 fps (45 Mb/s) 1920 x 1080i at 50/59.94 fps (160 Mb/s) 1920 x 1080i at 50/60 fps (110 Mb/s) 1920 x 1080i at 50/60 fps (60 Mb/s) 1920 x 1080i at 50/60 fps (45 Mb/s) 1920 x 1080p at 120 fps (180 Mb/s) H.264/MXF/XF-AVC 4:2:0 8-Bit: 1920 x 1080p at 24/25/30/50/60 fps (45 Mb/s)
Gamma Curve Canon Log 3, Wide DR
Still Photo 1920 x 1080
Audio Recording 4-Channel 24-Bit 48 kHz LPCM Audio
IP Streaming MPEG2: 1920 x 1080 to 3840 x 2160 at 25p, 29.97p, 50p, 59.94p (4.0 to 16.00 Mb/s) MPEG2: 1920 x 1080 to 1920 x 1080 at 50i, 59.94i (4.0 to 9.0 Mb/s)
Interfaces
Video Connectors 1 x HDMI (HDMI 2.0) Output 1 x BNC (12G-SDI) Output
Audio Connectors 2 x 3-Pin XLR Input 1 x 1/8" / 3.5 mm Stereo Input 1 x 1/8" / 3.5 mm Stereo Headphone Output
Other I/O 1 x USB Mini-B Output 1 x BNC Genlock, Sync Input/Output 1 x BNC Timecode Input/Output 1 x 2.5 mm Control 1 x 8-Pin D-Sub Control 1 x RJ45 LAN Input/Output
Wireless Interfaces 2.4 GHz, 5 GHz Wi-Fi Video Output, Audio Output, Control
Display
Display Type LCD
Screen Size 4.0"
Touchscreen Yes
Screen Resolution 1,230,000 Dots
EVF
EVF Display Type OLED
Screen Size .46"
EVF Resolution 1,770,000 Dots
Power
Battery Type Canon BP-A Series
Power Connectors 1 x Barrel (24 VDC) Input
Power Consumption 21.5 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 0 to 85%
General
Accessory Mount 1 x Cold Shoe Mount
Tripod Mount 1/4"-20 Female, 3/8"-16 Female
Built-In Light Yes (Infrared)
Dimensions 17.05 x 10.16 x 7.52" / 433 x 258 x 191 mm (With Protrusions) 14.88 x 8.27 x 6.38" / 378 x 210 x 162 mm (Without Protrusions)
Weight 5.96 lb / 2710 g
Packaging Info
Package Weight 14.6 lb
Box Dimensions (LxWxH) 21.7 x 13.2 x 12.8"

  • Canon XF705 4K 1″ Sensor XF-HEVC H.265 Pro Camcorder
  • Lens Hood with Barrier
  • Lens Cap
  • Microphone Holder with Screw
  • AC Cable
  • CG-A20 Battery Charger
  • WL-D6000 Wireless Controller with Battery
  • Eyecup
  • Shoulder Pad
  • SS-1200 Shoulder Strap
